Ever wondered how robots weld with perfect accuracy? Robotic welding transforms manufacturing by combining speed, precision, and safety. In this article, you’ll learn how welding robots work, their processes, and benefits across industries.
Robotic welding is a modern manufacturing process where programmable robots take over welding tasks. Unlike manual welding, which relies heavily on operator skill and endurance, robotic systems deliver consistent, repeatable welds every time. These machines excel in high-volume production environments, such as automotive, aerospace, and energy equipment. They handle complex shapes and repetitive welds efficiently, freeing operators from hazardous fumes and extreme heat.
Companies like Welden have been pioneering these systems, using robots to ensure high precision, safety, and reduced human error.
Key Features of Robotic Welding:
● Programmable robots execute welds automatically based on pre-set paths.
● Supports various welding types: MIG, TIG, arc, laser, and spot welding.
● Reduces material waste and increases production efficiency.
● Enhances operator safety by enclosing the welding area.
Example Applications Across Industries:
Industry | Typical Components Welded | Benefits |
Automotive | Chassis, suspension, exhaust | High-speed, consistent quality |
Aerospace | Airframes, landing gear, engine parts | Precision, reliability |
Energy & Solar | Panels, turbine components | Durability, reduced errors |
Medical Devices | Surgical tools, frames | Clean welds, exact tolerances |

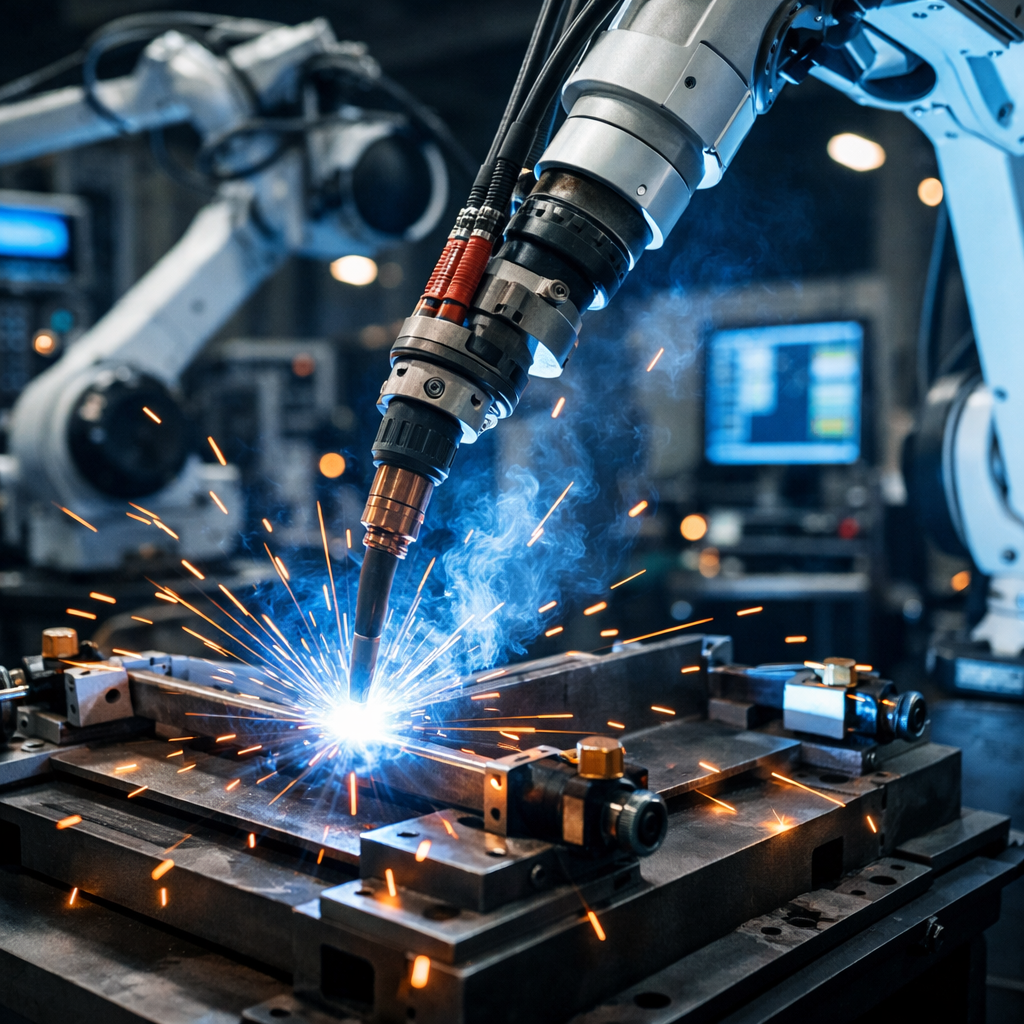

At the heart of robotic welding is the robotic arm, which moves precisely along programmed paths to complete welds. It works alongside a controller—the “brain” of the system—which dictates speed, angle, and torch positioning. Advanced setups often include sensors, cameras, and AI to adjust the weld in real time. Operators primarily handle setup, monitoring, and maintenance, while the robot executes the welds continuously without fatigue.
Robotic welding systems can adapt to different weld types. For example, MIG welding provides high-speed welds for large components, TIG welding delivers precision on thin materials, and laser welding ensures high accuracy for delicate parts. These systems also capture fumes, reduce emissions, and maintain a safe environment for humans.
Step-by-Step Workflow of Robotic Welding:
1. Programming: Operators input the welding path into the robot’s controller.
2. Material Loading: Parts are loaded into the workstation.
3. Welding Execution: The robotic arm performs welds with high repeatability.
4. Real-Time Adjustments: Sensors detect errors or misalignment, adjusting torch movements automatically.
5. Inspection: Robots may perform visual checks or leave it to automated vision systems.
MIG welding is ideal for fast, high-volume production. It feeds a continuous wire through a torch, melting the metal and filler simultaneously. It’s versatile, works well on medium-thick metals, and allows manufacturers to complete repetitive welds efficiently. Operators mainly focus on setup and monitoring, letting robots handle long, repetitive runs.
TIG welding offers high precision and clean welds on thin materials. It’s slower than MIG but perfect for specialty projects like bicycle frames or delicate automotive components. The process uses a non-consumable tungsten electrode, which produces minimal spatter and strong, visually appealing joints.
Arc welding is adaptable to various metals and outdoor environments. Robots maintain consistent arcs, improving accuracy compared to manual welding. It’s great for construction equipment, pipelines, and medium-scale structural parts, balancing strength and versatility.
Comparison Table: MIG, TIG, Arc
Welding Type | Key Feature | Best Use Case | Speed |
MIG | Continuous wire feed | High-volume sheet and frame welding | Fast |
TIG | Tungsten electrode, precision | Thin materials, specialty fabrication | Moderate |
Arc | Electric arc adaptability | Construction, pipelines, metals | Variable |
Resistance welding works by passing current through metal sheets, generating heat at the contact points to join them. It’s fast, energy-efficient, and ideal for sheet metal components in high-volume industries. Robots ensure uniform pressure and current, reducing defects and improving throughput.
Spot welding is a type of resistance welding commonly used in automotive frames. It joins thin metal sheets at discrete points, perfect for repeated, large-scale applications. Automated spot welding ensures every joint has consistent quality and reduces labor exposure to heat and fumes.
Key Benefits:
● Rapid weld cycles for mass production.
● Minimal human error and reduced material waste.
● High repeatability across automotive and industrial applications.

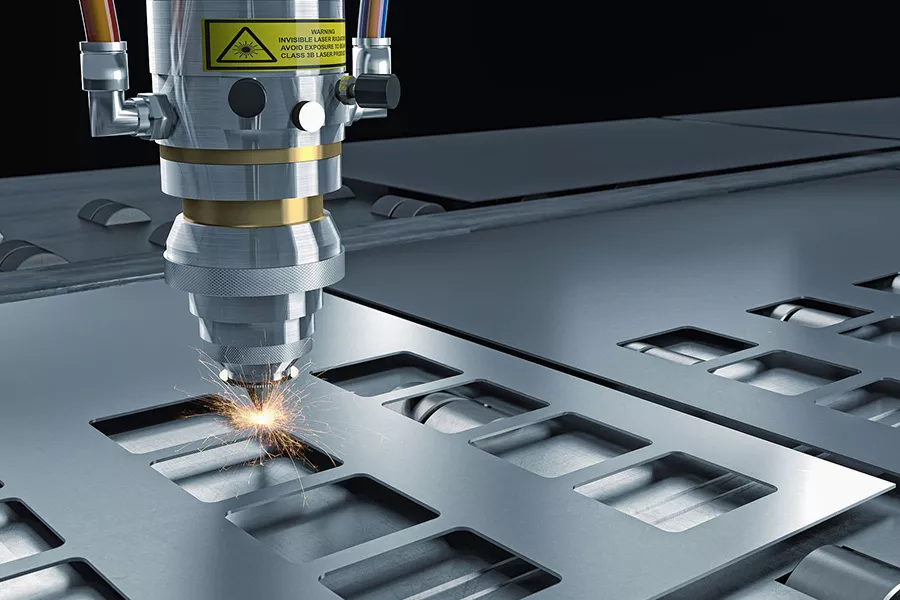

Laser welding uses a concentrated light beam to melt metal precisely. It’s excellent for electronics, automotive, and medical devices where exact tolerances matter. Robots guide the beam along complex paths, ensuring consistent depth and minimal distortion.
Plasma welding employs high-energy plasma jets for deep, precise penetration. This method is widely used in aerospace, heavy machinery, and industrial manufacturing where strong welds on thick materials are critical.
Advanced techniques like Friction Stir Welding (FSW) and Ultrasonic Welding (USW) allow robots to join specialized materials or components without filler metals. FSW works for aluminum structures, while USW handles plastics and metals in electronics manufacturing.
Summary Table: Advanced Welding Methods
Method | Precision | Materials | Typical Applications |
Laser | High | Thin to medium metals | Automotive, electronics |
Plasma | Medium | Thick metals | Aerospace, machinery |
Friction Stir (FSW) | Very High | Aluminum, alloys | Aerospace, transport parts |
Ultrasonic (USW) | High | Plastics, metals | Electronics, small components |
Robotic welding keeps production moving around the clock, without fatigue or breaks. Unlike manual welders, it maintains high repeatability, meaning every weld looks the same and meets strict tolerances. This consistency reduces material waste, scrap rates, and the need for rework. Companies like Welden use these systems to handle high-volume automotive and industrial components, letting operators focus on supervision instead of repetitive tasks.
Productivity Highlights:
● 24/7 operations for continuous output.
● Repeatable weld quality across batches.
● Reduced errors and wasted materials.
Example: Productivity Comparison
Method | Welds per Hour | Error Rate | Downtime |
Manual Welding | 50–80 | Medium | Frequent |
Robotic Welding | 150–300 | Low | Minimal |
Robots remove humans from hazardous environments where sparks, fumes, and high heat are constant. This dramatically lowers the risk of burns, respiratory problems, and other injuries. Advanced systems also integrate fume extraction, enclosures, and sensors to further protect workers. In Welden’s facilities, this combination of automation and safety measures allows operators to monitor processes safely rather than risk direct exposure.
Safety Benefits:
● Eliminates human contact with high-temperature welds.
● Reduces exposure to toxic fumes and sparks.
● Sensors detect anomalies to prevent accidents.
Though the initial investment in robotic welding is significant, long-term costs drop due to less labor dependency and fewer defects. Robots consistently produce high-quality welds, which reduces inspection times and rework needs. This efficiency is especially important for industries producing thousands of identical components. Welden’s automated welding cells demonstrate how combining precision with cost control strengthens manufacturing operations.
Cost and Quality Metrics:
Category | Manual Welding | Robotic Welding |
Labor Cost | High | Moderate |
Rework Frequency | Medium | Low |
Quality Consistency | Medium | High |
Robotic welding adapts easily to both high-volume production and complex custom projects. It integrates with existing manufacturing lines, conveyors, and automation systems, making scaling up simple. Welden’s setups show that a single robotic cell can switch between MIG, TIG, or laser welding for different product types, offering both flexibility and consistent output.
Scalability Advantages:
● Handles varying production volumes without retraining operators.
● Compatible with multiple welding processes.
● Flexible integration with existing manufacturing setups.
Robots handle vehicle frames, suspension, and exhaust systems efficiently, producing consistent welds at high speed. Operators mainly supervise and load materials. High-volume lines rely on them to reduce errors, scrap, and downtime. Welden uses automated cells to ensure every component meets strict tolerances.
Key Advantages:
● 24/7 production capability
● Uniform weld quality across all batches
● Safer working conditions
Example Welding Rates
Component | Manual Time | Robotic Time | Consistency |
Chassis Frame | 3 hours | 1 hour | High |
Suspension Arm | 45 min | 15 min | High |
Exhaust System | 1.5 hours | 40 min | High |
Robotic welding ensures precision on airframe parts, engines, solar panels, and wind turbines. Robots reduce human error, fatigue, and variability. At Welden, systems combine MIG, TIG, and laser welding for delicate and high-strength materials.
Benefits:
● Exact tolerances for critical components
● Reliable performance under high-stress applications
● Continuous monitoring for safety
Robots weld steel beams, cranes, and modular equipment, handling repetitive, heavy-duty tasks. They maintain uniform quality across all parts and allow scaling of production without sacrificing precision.
Robotic welding serves medical devices, electronics, and robotics components, performing custom, high-precision welds. Robots reduce contamination, save materials, and allow flexibility across small batches. Welden uses multi-process cells to adapt to varying project needs.
Advantages:
● Accurate and repeatable welds
● Safe handling of sensitive components
● Supports multiple welding methods in one station
Robotic welding automates complex welds, improving speed, precision, and safety across industries. Welden’s systems deliver consistent, high-quality welds for automotive, aerospace, and specialized projects while reducing errors and labor. Their versatile welding solutions adapt to various materials and production needs, providing reliable performance and value to manufacturers.
A: Robotic welding uses programmable robots to perform precise, repeatable welds automatically.
A: It increases efficiency, reduces errors, and allows 24/7 operation for high-volume manufacturing.
A: It enhances safety, ensures consistent quality, and lowers long-term labor costs.
A: Automotive, aerospace, energy, construction, and medical device manufacturing use robotic welding extensively.
A: Yes, systems like those from Welden adapt to various metals and project specifications.
